Features of Refrigerated Air Dryer
Shanghai Rotorcomp refrigerated air dryer adopts America HANKISON bulk liquid separator/filter, Japan Panasonic and Korea LG refrigeration compressors to ensure the durability and stability. It can separate 99.99% of liquid water from the refrigerated compressed air to prevent the secondary evaporation of water, the separation efficiency is higher than that of cyclone separation.
Galvanized copper piping system has optional internal pressure from 0.3 to 4.5MPa.
Stainless steel process piping can be applied to the food and pharmaceutical industries due to its high resistance to acid and alkali corrosion.

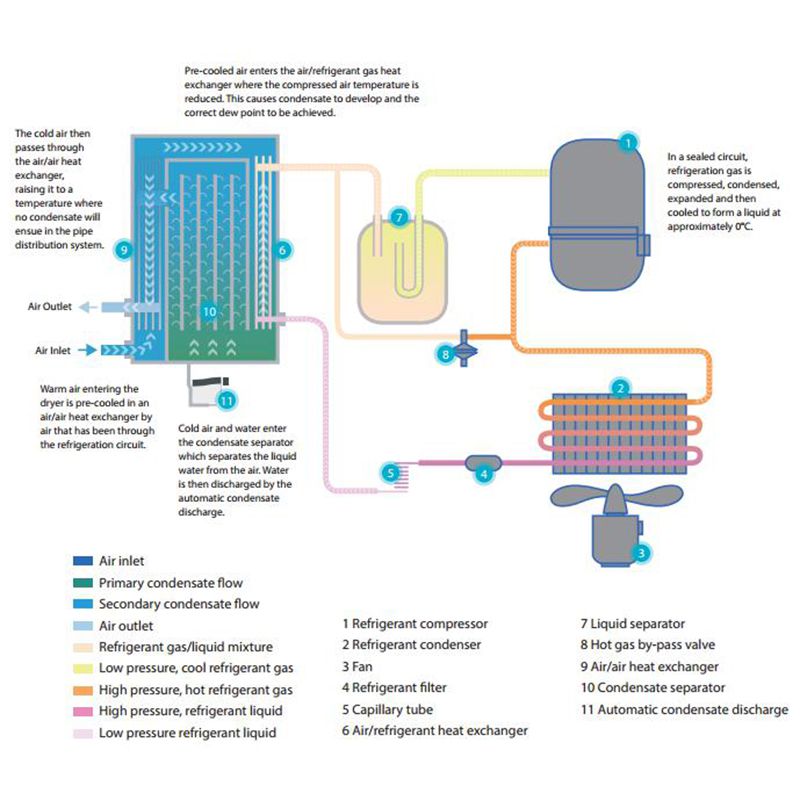

As a trustworthy manufacturer of compressed air dryer, we use counter flow heat exchanger to improve the cooling capacity, without any risk of condensation in the compressed air system.

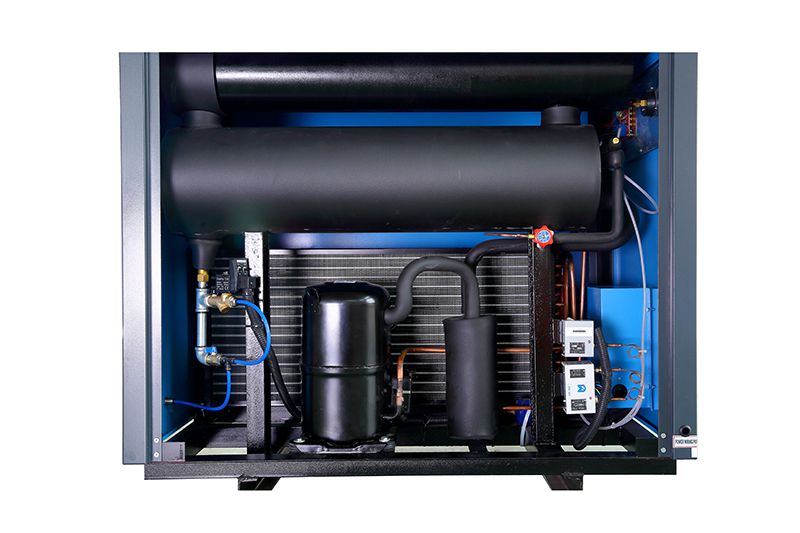

Evaporator is made from thin-walled copper tubes and hydrophilic aluminum fins, providing high heat transfer efficiency for the refrigerated air dryer.
Improved drain system helps efficiently drain out large quantities of condensate and residual oil from compressed air dryer, therefore ensuring clean air drying while lowering the load of the system.
Technical Specifications
Model
Capacity
Power
Voltage
Connection
Dimension
Weight
m3/min
kW
V/50Hz
L×W×H
Kg
HDR-10HP
1.2
0.85
220
Rc1″
630×450×640
50
HDR-20HP
2.4
1
220
Rc1″
700×450×830
80
HDR-30HP
3.8
1.25
220
Rc1.5″
850×500×920
105
HDR-50HP
6.5
1.5
220
Rc1.5″
880×550×1020
150
HDR-60HP
8.5
1.8
220
Rc1.5″
880×550×1020
160

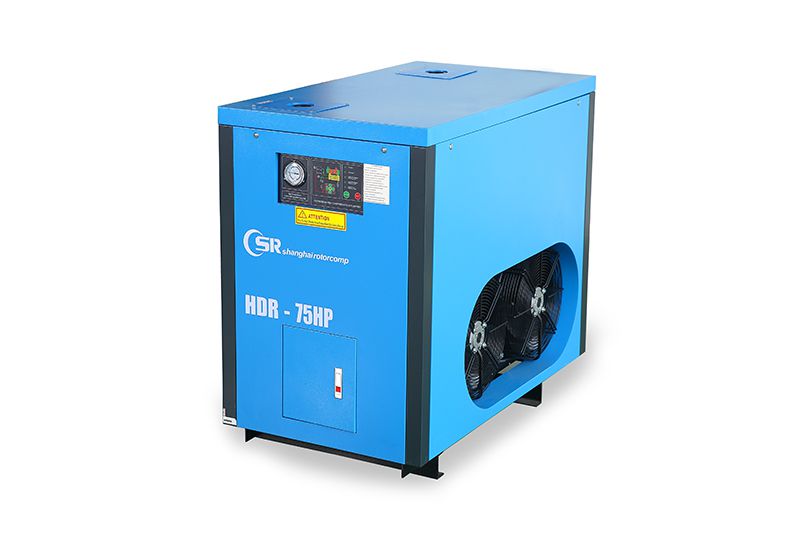

HDR-75HP
10.7
2.5
380
Rc2″
1180×670×1080
240
HDR-100HP
13.5
2.5
380
Rc2″
1180×670×1080
260
HDR-125HP
18
3
380
DN65
1360×710×1220
310
HDR-150HP
25
4
380
DN80
1360×710×1220
400
HDR-200HP
28
4.5
380
DN80
1650×750×1290
450
HDR-300HP
35
6.5
380
DN100
1670×750×1675
780
HDR-350HP
426
8.8
380
DN100
2000×950×1740
820
HDR-400HP
55
10.2
380
DN125
2350×1050×1910
900
HDR-450HP
65
13
380
DN125
2550×1100×1940
1100
