- Power 5.5-132kW
- Working pressure 8-15bar
- Free air delivery 0.53-23.08m³/min

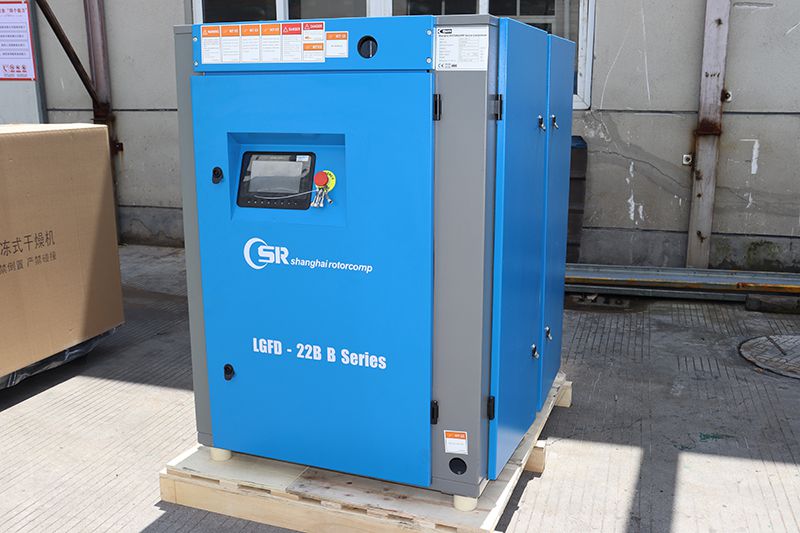

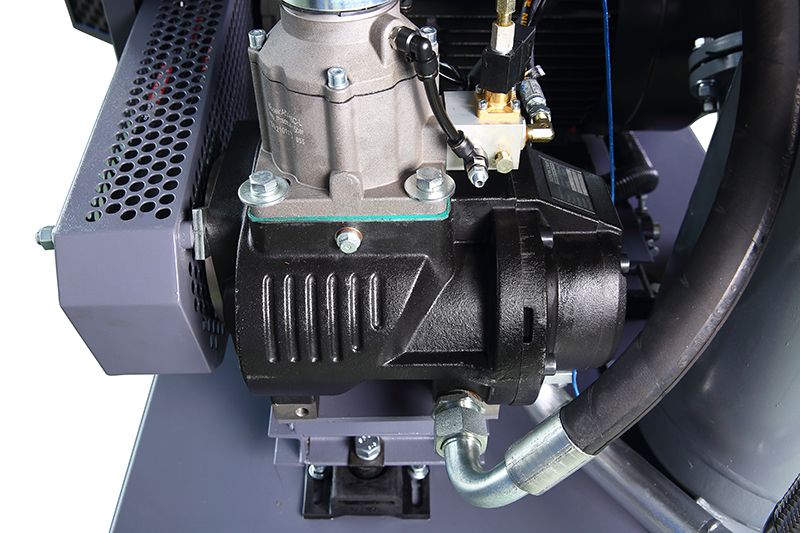

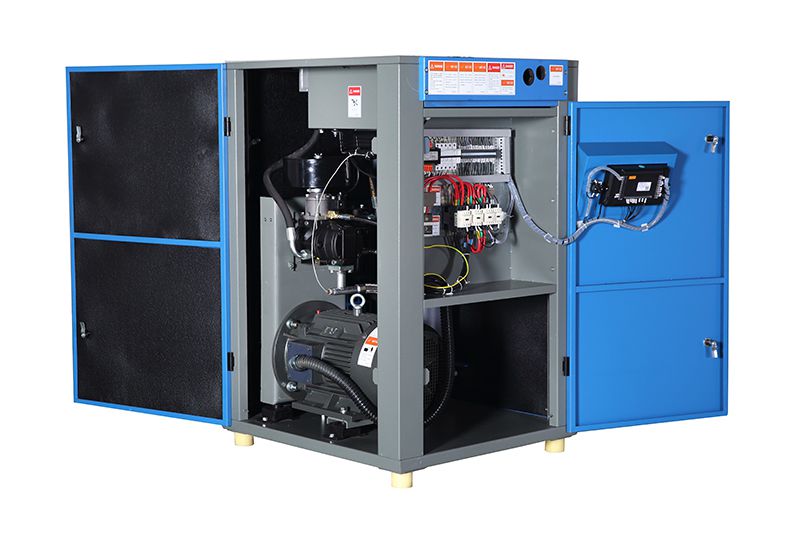

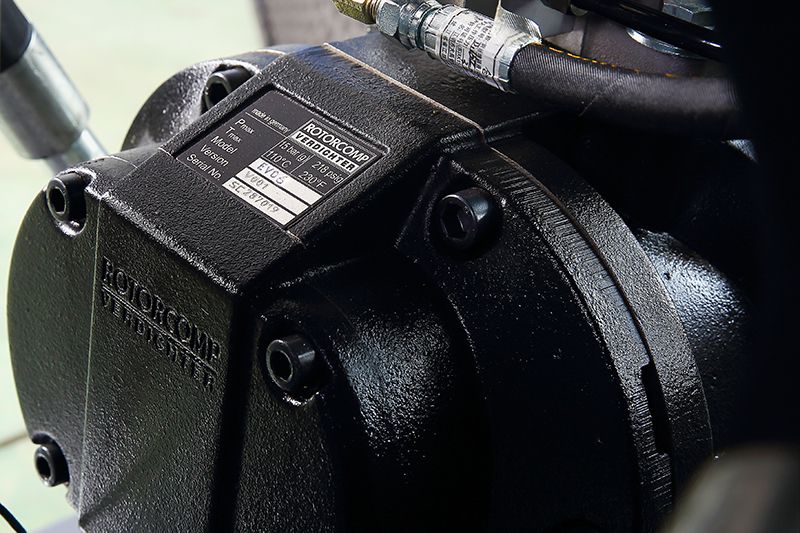

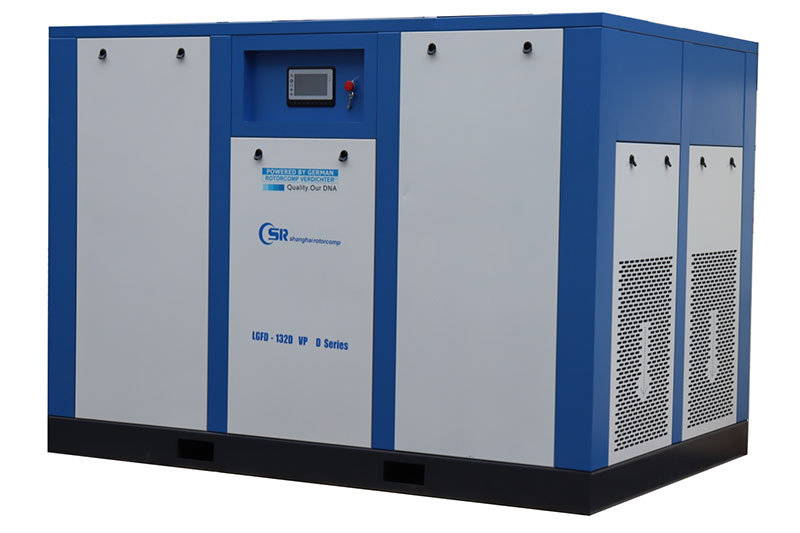

EVO series oil-injected screw compressor was designed with high-efficiency and quieter operation in mind. This rotary screw compressor adopts Rotorcomp screw air end that has the most highly regarded quality label "Made in Germany". The unique design of the air compressor provides greater energy efficiency and higher stability, which are certified in accordance with ISO, TUV, GA and SGS standards. This oil-injected screw compressor is offered with a standard 2-year warranty, and the screw air end is covered by a 5-year warranty.
Advantages of EVO® Technology
Ultimate Efficiency and Reduced Noise
Model | Capacity (m3/min)* | Power (kW) | Inlet/Outlet | Noise Level | Dimension | Weight | ||||
8bar | 10bar | 13bar | 15bar | Motor | Motor (Fan) | dB(A)** | L×W×H in mm | kg | ||

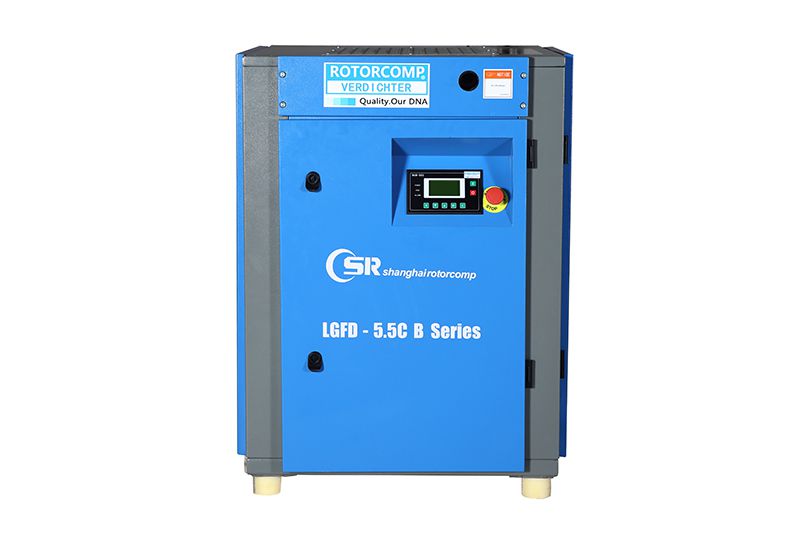

LGFD-5.5 | 0.87 | 0.75 | 0.61 | 0.53 | 5.5 | 0.09 | G1 | 69 | 900×750×900 | 245 |
LGFD-7.5 | 1.2 | 1.04 | 0.9 | 0.8 | 7.5 | 0.09 | G1 | 69 | 900×750×900 | 250 |
LGFD-11 | 1.79 | 1.58 | 1.32 | 1.17 | 11 | 0.18 | G1 | 70 | 950×800×1290 | 370 |
LGFD-15 | 2.4 | 2.15 | 1.84 | 1.66 | 15 | 0.18 | G1 | 70 | 950×800×1290 | 480 |
LGFD-18.5 | 3 | 2.9 | 2.52 | 2.02 | 18.5 | 0.37 | G1 | 71 | 1250×960×1300 | 730 |
LGFD-22 | 3.51 | 3.16 | 2.71 | 2.45 | 22 | 0.37 | G1 | 71 | 1250×960×1300 | 750 |
LGFD-30 | 4.88 | 4.32 | 3.64 | 3.25 | 30 | 0.75 | G1-1/4 | 71 | 1440×1006×1296 | 1200 |
LGFD-37 | 5.83 | 5.21 | 4.44 | 4.01 | 37 | 0.75 | G1-1/4 | 73 | 1440×1006×1296 | 1350 |
LGFD-45 | 7.08 | 6.3 | 5.43 | 4.94 | 45 | 1.1 | G1-1/4 | 75 | 1440×1006×1296 | 1400 |
LGFD-55 | 9.32 | 8.33 | 7.05 | 6.31 | 55 | 1.1 | G2 | 75 | 1600×1200×1650 | 1600 |
LGFD-75 | 12.31 | 11.13 | 9.61 | 8.74 | 75 | 1.1 | G2 | 75 | 1600×1200×1650 | 1750 |
LGFD-90 | 16.45 | 14.26 | 11.72 | 10.8 | 90 | 2.2 | G2 | 75 | 2000×1580×1790 | 2600 |
LGFD-132 | 20.26 | 17.48 | 14.25 | 13.05 | 110 | 2.2 | G2 | 78 | 2500×1700×1900 | 3000 |
LGFD-180 | 23.08 | 20.54 | 17.65 | 16.05 | 132 | 2.2 | G2 | 78 | 2500×1700×1900 | 3150 |
