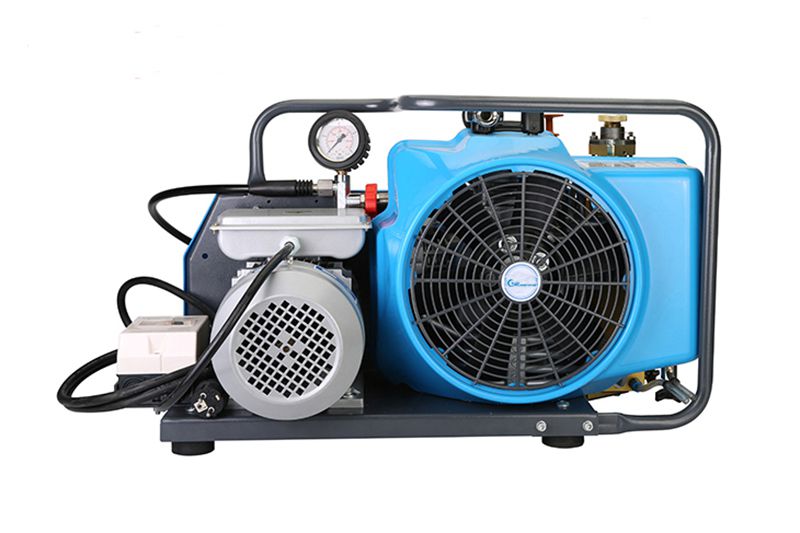

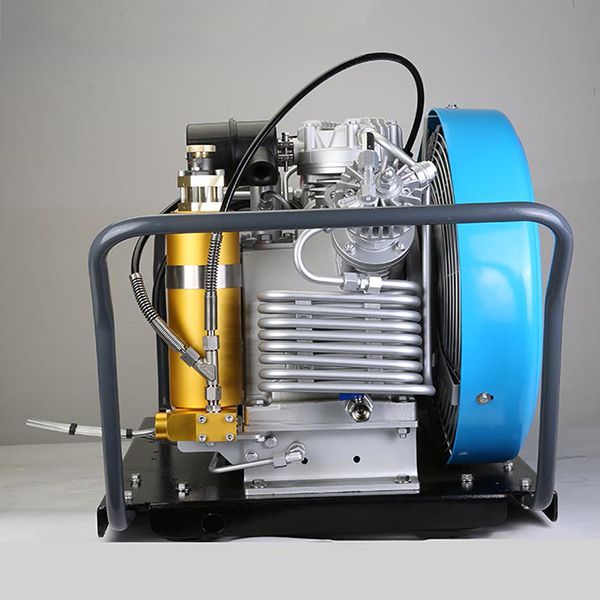

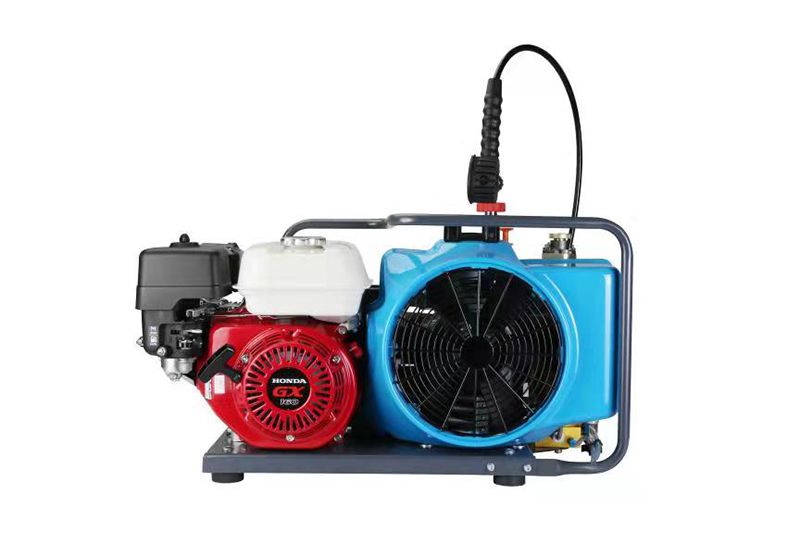

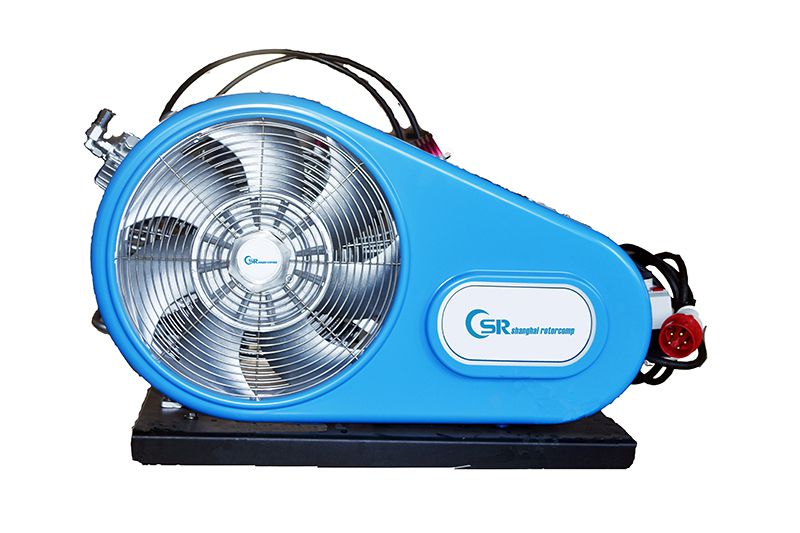

    Portable breathing air compressor is a lightweight and compact compressor suitable for anyone that wants to rely on pure and safe breathing air in mobile applications. Thanks for its compact dimensions and advanced technology, this mobile breathing air compressor is a perfect solution for operating in offshore platforms, diving, firefighting, shipboard, paintball, sport shooting, and more applications where pure breathing air is needed for life safety.

    Our portable breathing air compressor is quiet and oil-free air compressor designed for indoor installation, and the compact and lightweight design allows the breathing air compressor to be transported by one person.

    Request a quote
    • Features
    • Specifications
    Features
    • Individual breathing air cylinder;
    • Easy to use and maintain;
    • Optimal cooling air flow;
    • All bearings are characterized by large structure, reduced heat and low friction, ensuring long operating life;
    • Cylinders are plasma nitrided and plateau honed to provide excellent surface hardness for longer service life, and the cylinder surface is oil lubricated to lower the energy consumption while further prolonging the service life.

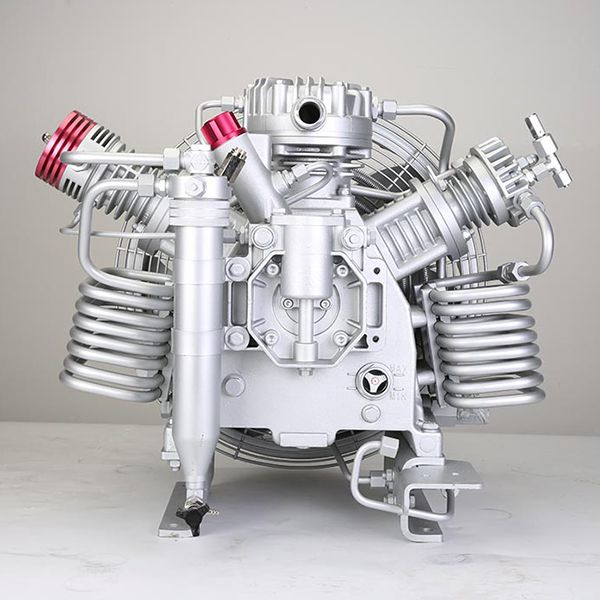

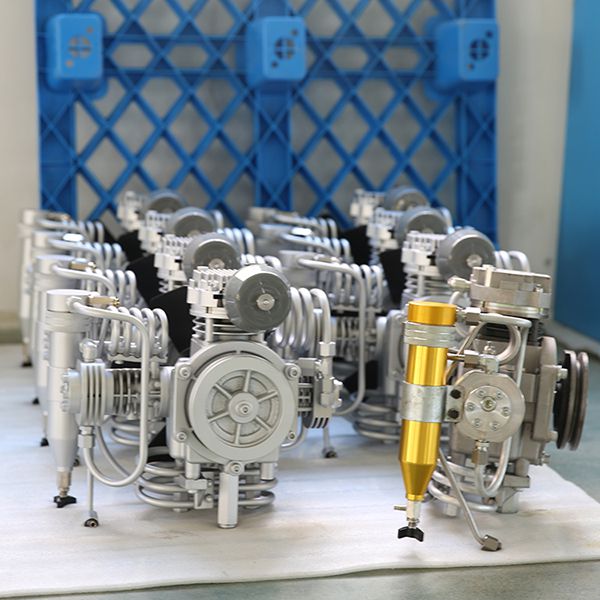

    Compressor Block

    Compressor Block

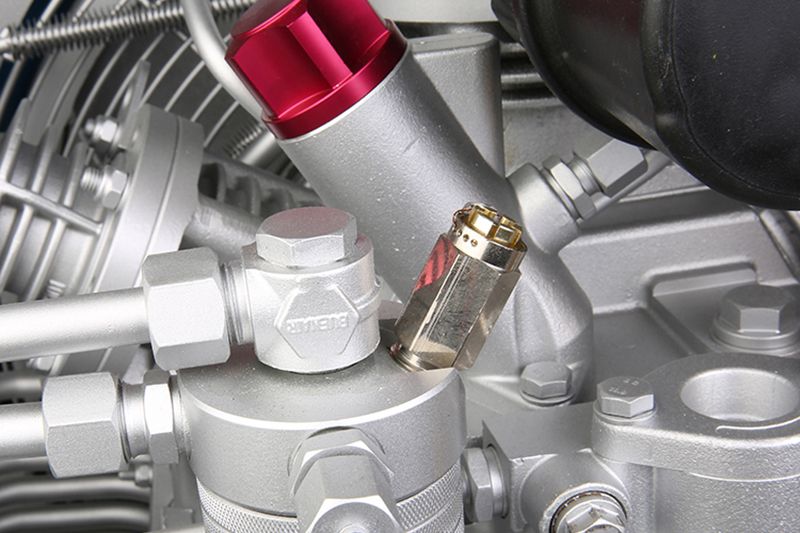

    • All stainless steel cooling pipes, final stage cooler is equipped with oil/water separator;
    • Safety valves after each stage;
    • Compressor intake air filter system with filter cartridges;
    Filter system

    Filter system The filter system is configured with integrated oil/water separator and pressure retention check valve, allowing for use of genuine BAUER filter cartridges to purify the breathing air that is compliant with DIN EN 12021¹ standard. A type-tested and sealed final pressure safety valve can ensure highly reliable and stable operation, the air capacity to be treated can reach 140m³.

    Automatic condensate drain system

    Automatic condensate drain system This system automatically removes the condensate from the intermediate separator and final separator during operation. It also automatically closes when the unit reaches final pressure.

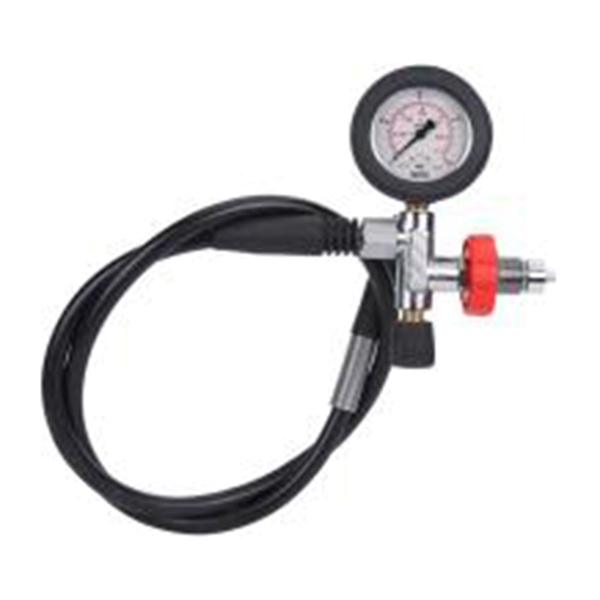

    Filling hose

    Filling hose High-quality high-pressure filling hoses are made from high grade materials that are harmless and long lasting to achieve flexible and safe operation. Swivel hose connections allow for quick and easy connection the filling valve with breathing air cylinder.

    Technical Specifications
    Model Charging Rate (L/min) Drive Net Weight Dimensions (L×W×H) (cm)
    SBC-100P
    		 100 Gasoline engine 2.2 47 77 × 38 × 42
    SBC-100E
    		 100 220/380/440 V-3/50 Hz 2.2 42 70 × 38 × 42
    SBC-100ET
    		 100 220/380/440 V-1/50 Hz 2.2 42 70 × 38 × 42
    SBC-150P
    		 150 Gasoline engine 3.0 47 79 × 40 × 42
    SBC-150E
    		 150 220/380/440 V-3/50 Hz 3.0 52 66 × 40 × 42
    SBC-150ET
    		 150 220/380/440 V-3/50 Hz 3.0 52 66 × 40 × 42
    SBC-250P
    		 250 Gasoline engine 5.5 124 160 × 59 × 57
    SBC-250E
    		 250 20/380/440 V-3/50 Hz 5.5 132 157 × 58 × 57
    SBC-250ET
    		 250 220/380/440 V-1/50 Hz 5.5 132 157 × 58 × 57
    SBC-300P
    		 300 220/380/440 V-1/50 Hz 7.5 132 130 × 68 × 70
    SBC-300E
    		 300 20/380/440 V-3/50 Hz 7.5 132 130 × 64 × 70
    SBC-300ET
    		 300 220/380/440 V-1/50 Hz 7.5 132 130 × 64 × 70

    Measured during cylinder filling, from 0 to 200bar, tolerance ±5%
    More options of voltage and frequency are selectable
