Stationary Breathing Air Compressor (Super Silent)
Stationary Breathing Air Compressor (Super Silent)
Stationary Breathing Air Compressor (Super Silent)
Portable breathing air compressor is a lightweight and compact compressor suitable for anyone that wants to rely on pure and safe breathing air in mobile applications. Thanks for its compact dimensions and advanced technology, this mobile breathing air compressor is a perfect solution for operating in offshore platforms, diving, firefighting, shipboard, paintball, sport shooting, and more applications where pure breathing air is needed for life safety.
Our portable breathing air compressor is quiet and oil-free air compressor designed for indoor installation, and the compact and lightweight design allows the breathing air compressor to be transported by one person.
Request a quote
Super silent guarantee
New anti-vibration base frame and optimized noise insulation housing;
New automatic condensate drain unit is quieter and more energy efficient;
Easy operation

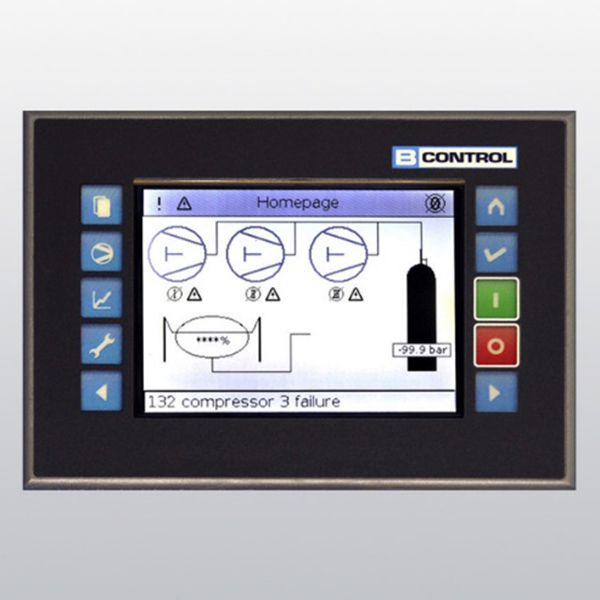

Fully automatic compressor control: S-CONTROL MICRO with color display;

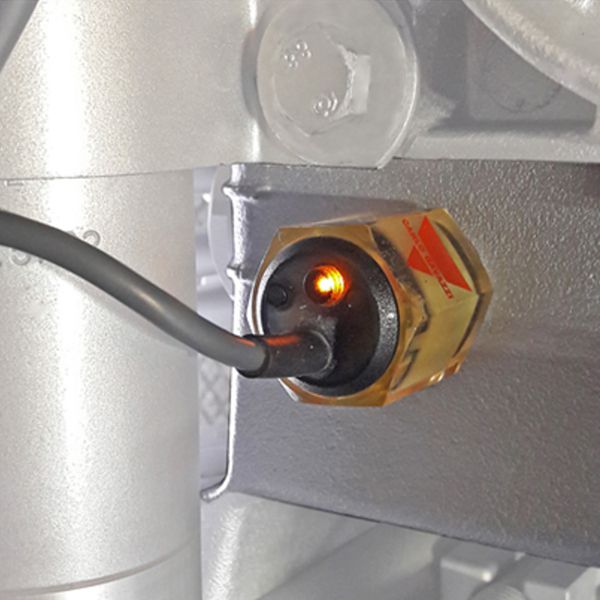

Oil level monitoring function allows to safely switching off the compressor when the oil level is low;

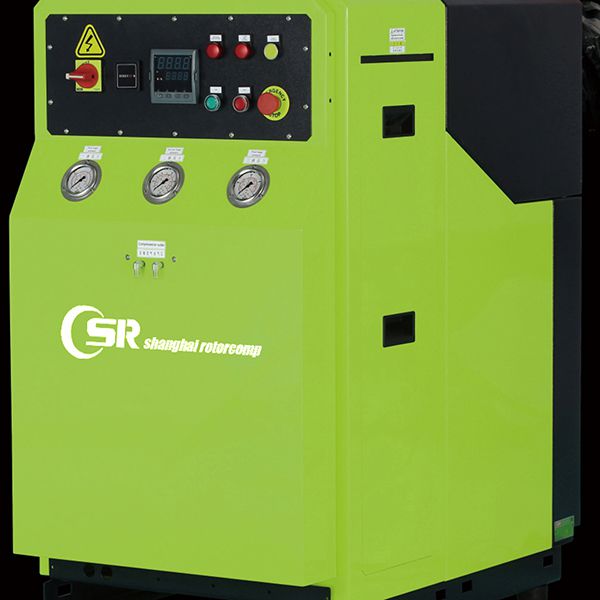

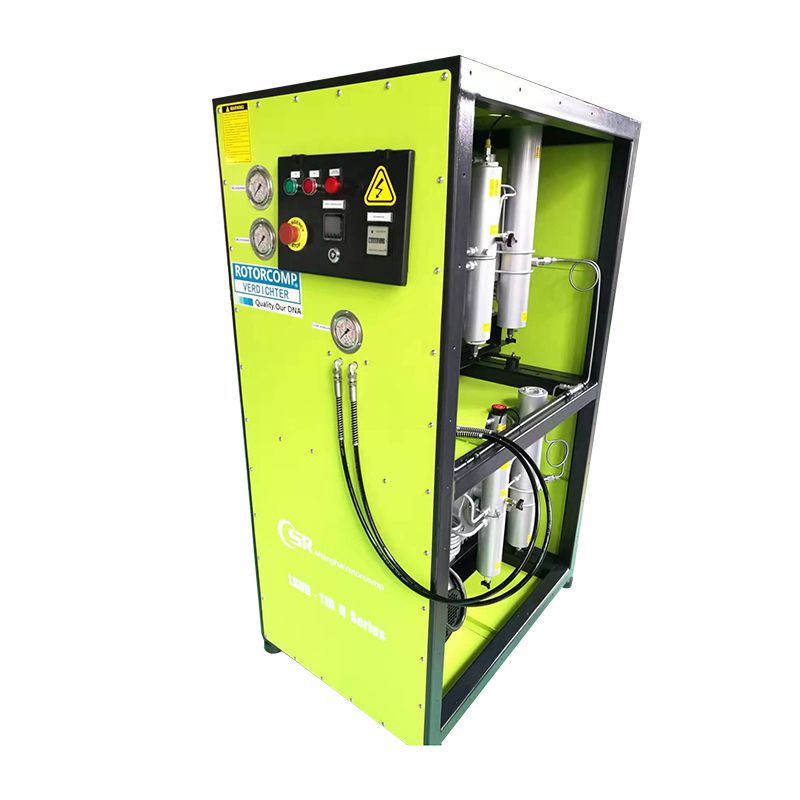

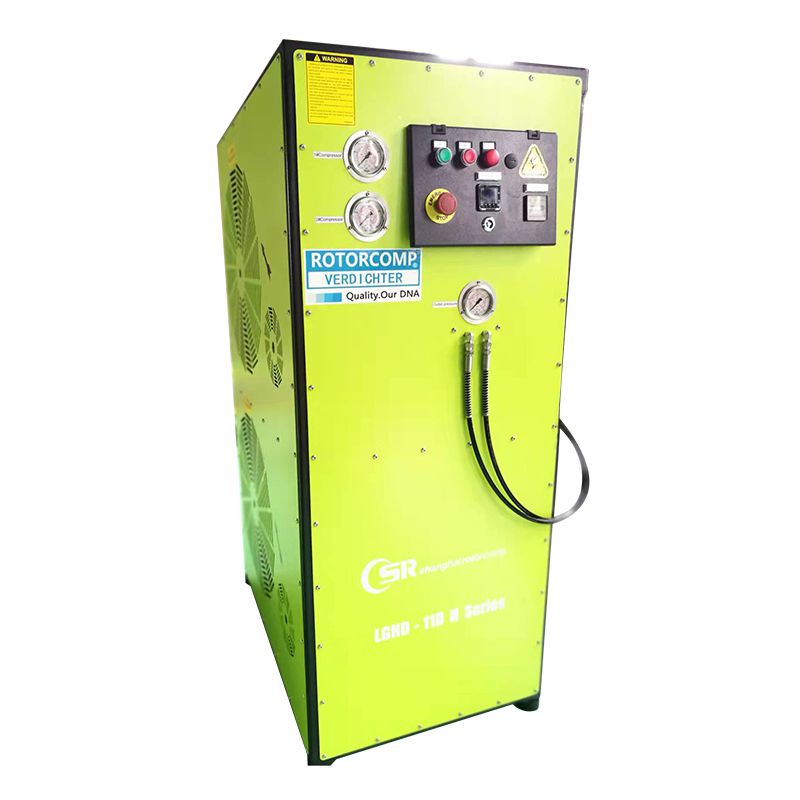

HD Series Stationary Breathing Air Compressor
Our HD series breathing air compressor is developed and manufactured to meet the needs of all users who are seeking to rely on high power and outstanding continuous operation in the professional applications. This stationary compressor has combined features of our own classic SR compressor block, improved components and cutting-edge design that was focused on ergonomics, easy operation, low noise level and enhanced efficiency.
All key control elements are ergonomically arranged for operator to easily access. The integrated condensate container has an increased capacity of 40%. With the help of compressor control, the fill level is precisely controlled and operator will be informed in a timely manner when the condensate needs to be emptied.
The HD-CONTROL MICRO has expended functions allowing for remote control and monitoring of the air compressor. At Shanghai Rotorcomp we provide ultra-quiet stationary breathing air compressors that are available in 225bar or 330bar to accommodate your individual application needs.

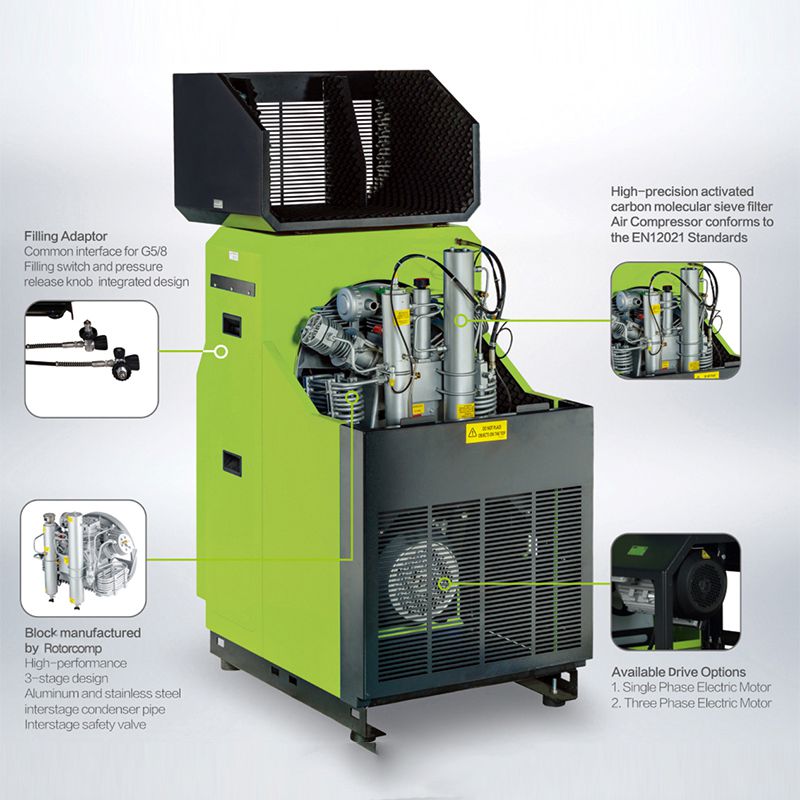

Features
Individual breathing air cylinder;
Easy to use and maintain;
Optimal cooling air flow;
All bearings are characterized by large structure, reduced heat and low friction, ensuring long operating life;
Cylinders are plasma nitrided and plateau honed to provide excellent surface hardness for longer service life, and the cylinder surface is oil lubricated to lower the energy consumption while further prolonging the service life.
Super silent sound-insulating housing

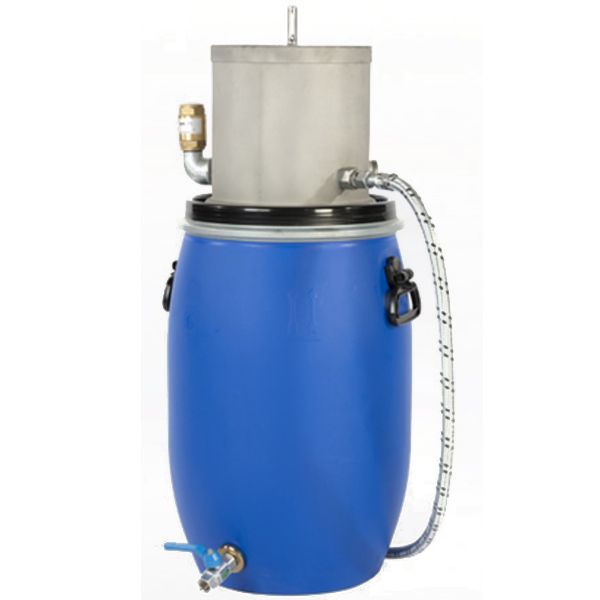

Condensate collecting tank
Control panel (including power circuit breaker / hour meter / temperature & pressure control)

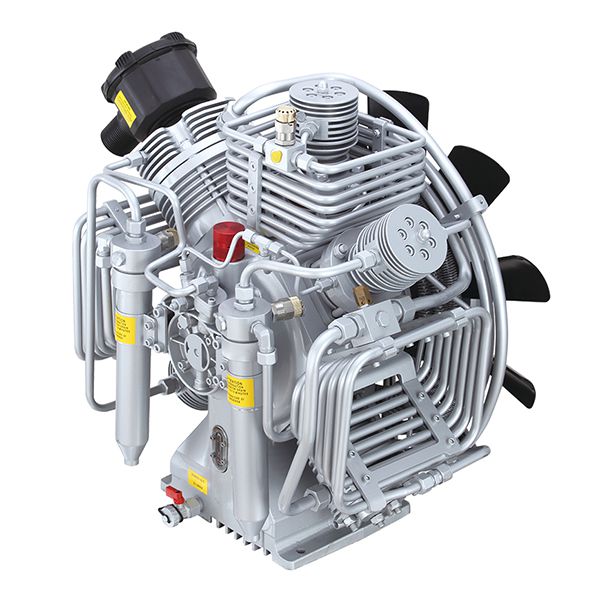

High efficiency 4-cylinder 4-stage compressor (500bar for 4-cylinder 4-stage compressor)

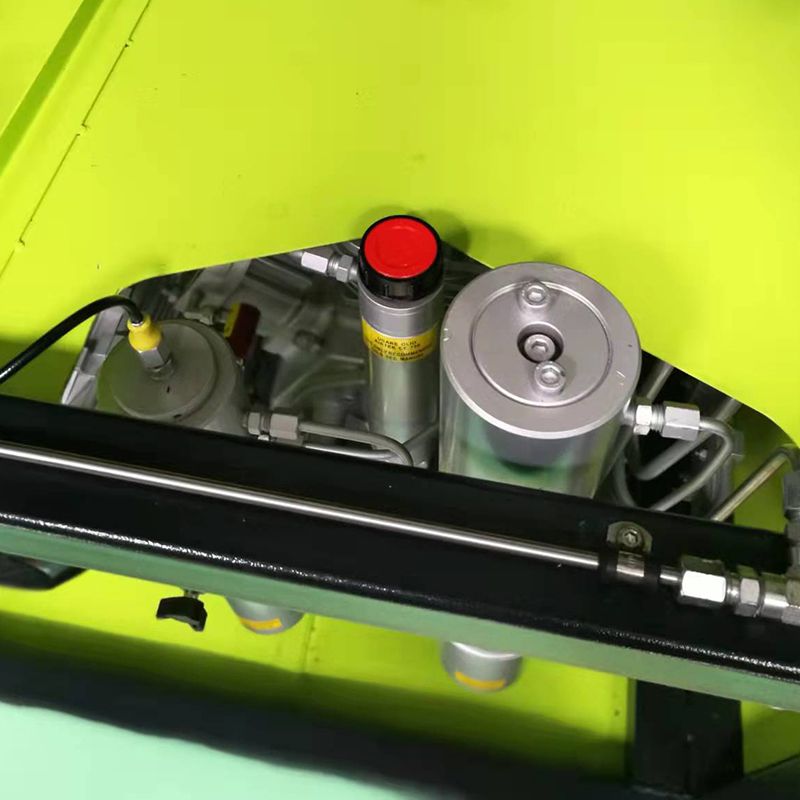

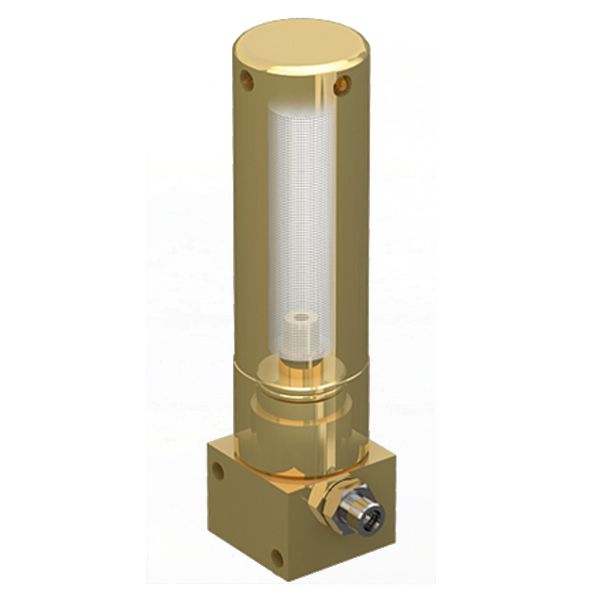

High capacity filter cartridge system (activated carbon / molecular sieve)

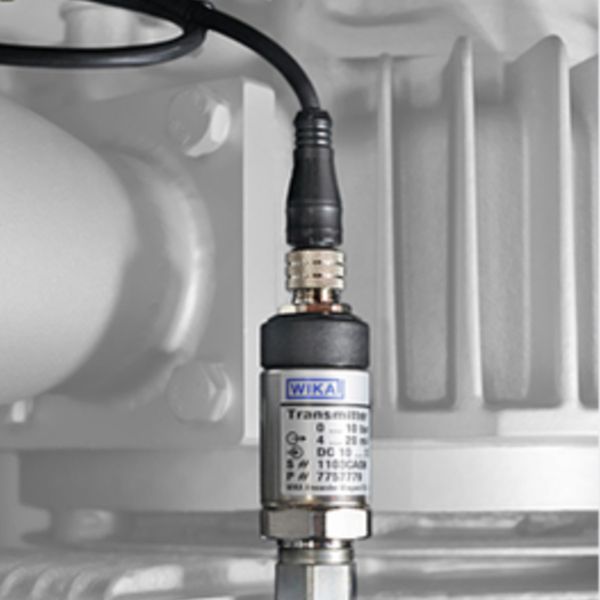

Intermediate pressure and temperature monitoring
Oil level monitoring
Technical Specifications
Model
Charging Rate (L/min)
Drive
Net Weight
Dimensions (L×W×H) (cm)
LGHD-215ET
215
220/380/440 V-3/50 Hz
4.0
235
120 × 100 × 68
LGHD-215E
215
220/380/440 V-1/50 Hz
4.0
235
120 × 100 × 68
LGHD-265ET
265
220/380/440 V-1/50 Hz
5.5
245
120 × 100 × 68
LGHD-265E
265
220/380/440 V-1/50 Hz
5.5
245
120 × 100 × 68
LGHD-300ET
300
220/380/440 V-1/50 Hz
7.5
245
120 × 100 × 68
LGHD-300E
300
220/380/440 V-3/50 Hz
7.5
255
120 × 100 × 68
LGHD-600ET
600
220/380/440 V-1/50 Hz
15
710
160 × 92 × 168
LGHD-600E
600
220/380/440 V-3/50 Hz
15
710
160 × 92 × 168
LGHD-900ET
900
220/380/440 V-1/50 Hz
22
725
160 × 92 × 168
LGHD-900E
900
220/380/440 V-3/50 Hz
22
725
160 × 92 × 168
Measured during cylinder filling, from 0 to 200bar, tolerance ±5%
More options of voltage and frequency are selectable
