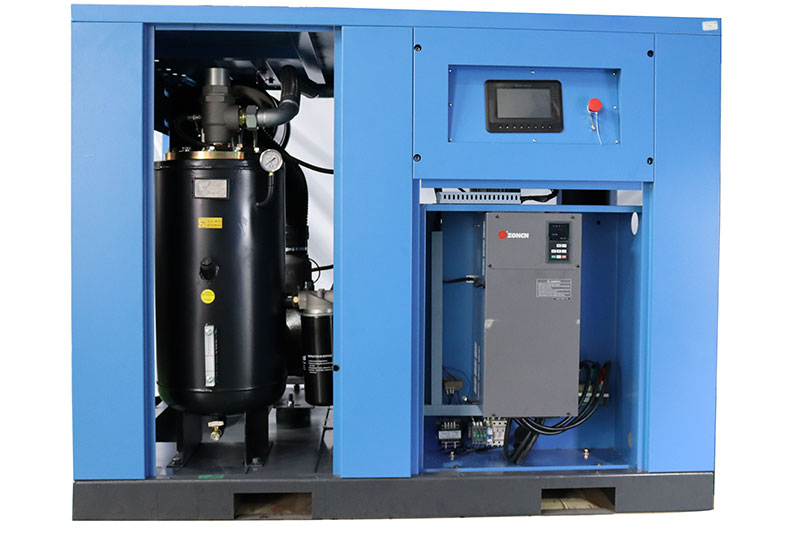

PM-VSD Rotary Screw Compressor, VP Series

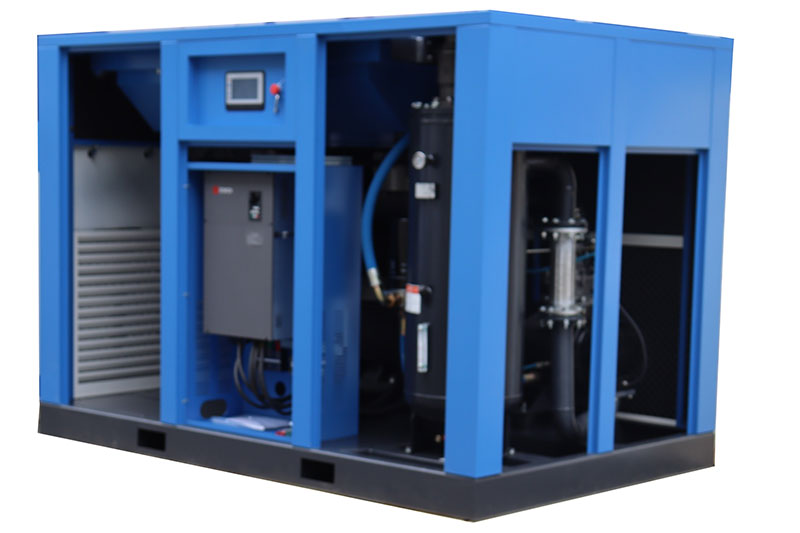

PM-VSD Rotary Screw Compressor, VP Series

Our VP series PM-VSD rotary screw compressor is 6-20% more energy efficient than those compressed air systems with conventional three-phase asynchronous motors. With a relatively wide frequency range of 30-200hz, this variable speed drive (VSD) screw compressor consumes 15-35% less energy in comparison to the other air compressors with operating frequency of 30-100hz. The motor is IE3 and MEPS standards compliant.

Request a quote
LGFD series screw compressor

Power 5.5-132kW
Working pressure 8-15bar
Free air delivery 0.14-23.08m³/min

Features
Advantages
Specifications

Features

Maintain the pressure of pipeline network within ±0.01MPa;
Reduced average working pressure and less leakage;
The method of soft start increases current balance of motor, and avoids power surges;
Our PM-VSD rotary screw compressor can be designed and configured according to your specific needs, such as air-cooling / water-cooling method, oil content, weight and dimension;
Wider frequency adjustable from 30-200Hz, widely adjust range can well suit consumer’s condition.

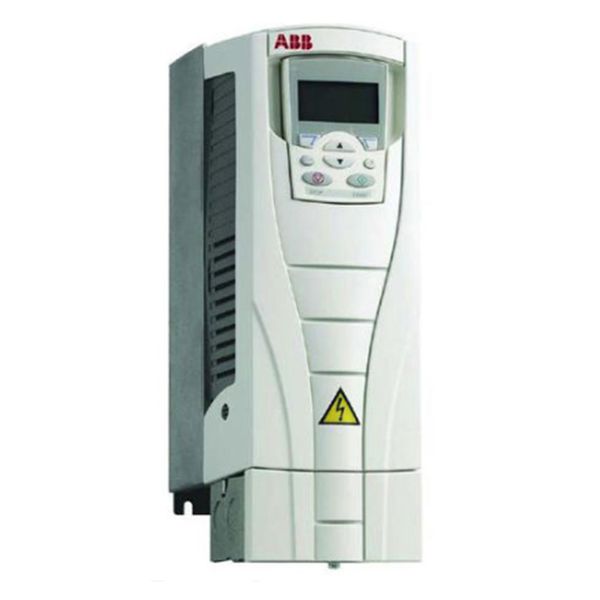

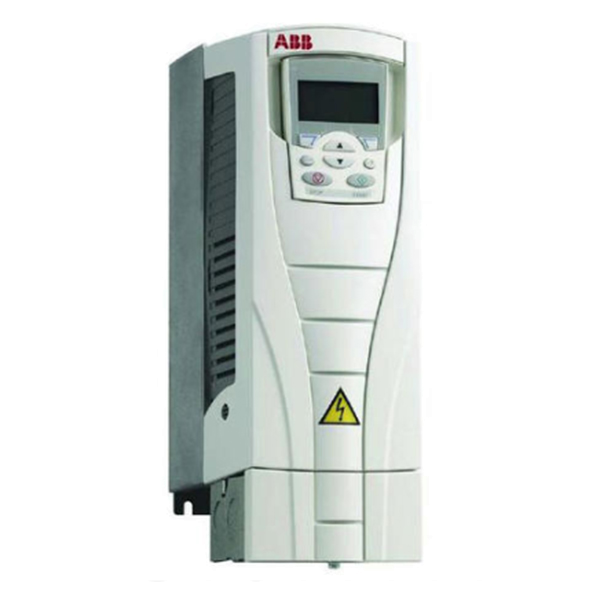

More inverters could be selected as Siemens, ABB, Vaconn, Schneider, HOLIP inverter (optional).
1-year compressor warranty, 3-year air end warranty;

Advantages

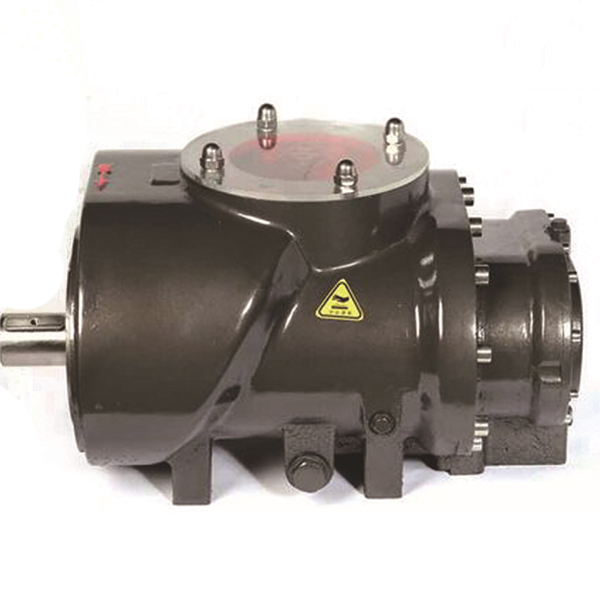

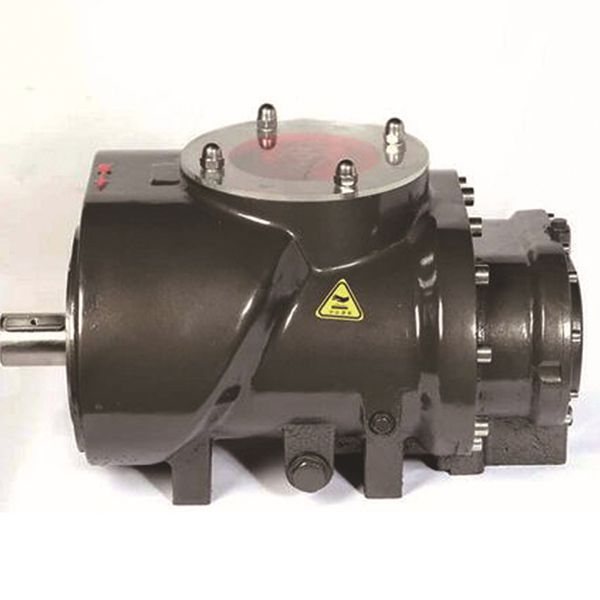

Upgraded screw air end, higher flow The high output air end and motor operate at slow rotating speed, each rotor works at appropriate speed to deliver the optimum ratio between the delivery rate and pressure, enabling the high level of efficiency.

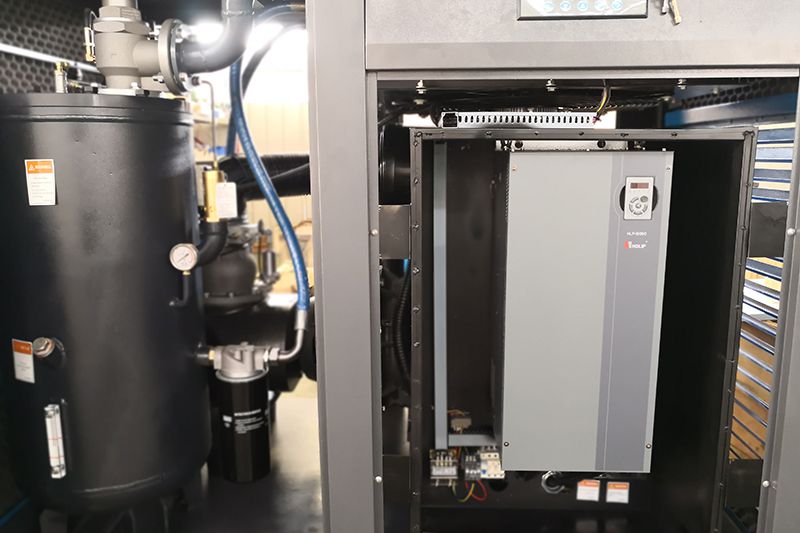

Wider frequency range of 30-200hz, 15-35% less energy consumption The new generation of control system and cooling fan adopts dual frequency converter to ensure stable and energy-saving operation. The modular design allows for easy maintenance of the air compressor. The PCB coating protects the components from dust, moisture and abrasion. The heat radiation design permits the air compressor to use in working environment with high ambient temperature up to 50℃.

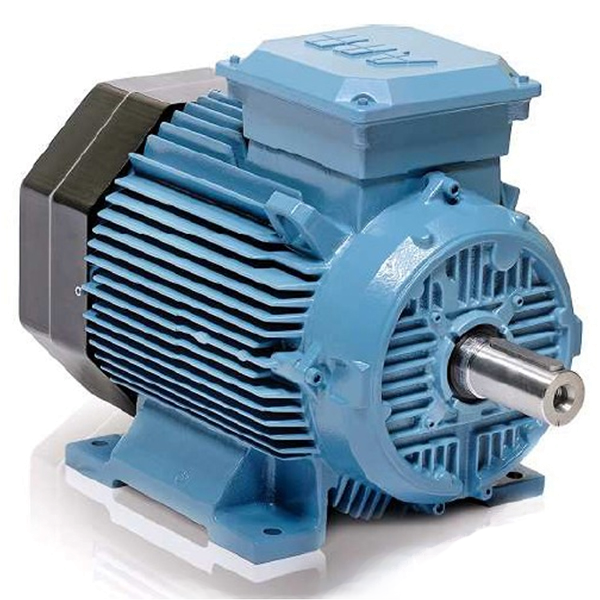

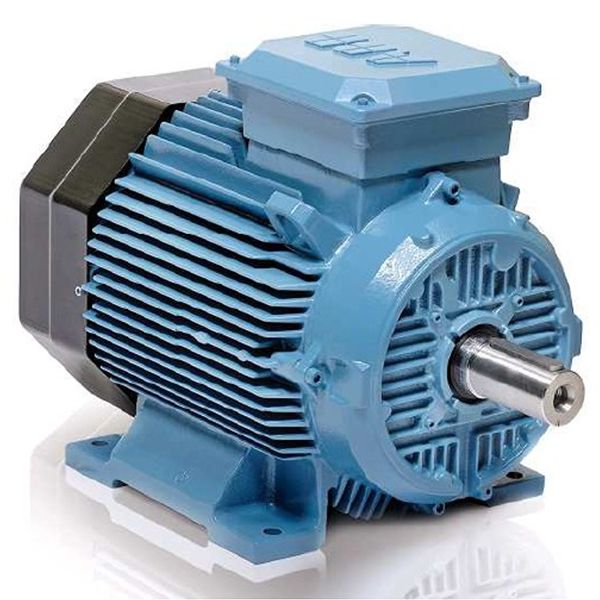

Higher efficient PM-VSD motor, IE3/IE4, IP55, SF.1.2, TEFC standard applied for compressor. Upgraded PM-VSD motor could reach Max.96.8% efficiency, 30—200 hz frequency adjusted for better energy-saving performance and to reach energy efficiency standard of CN-CE-1306-06/21.

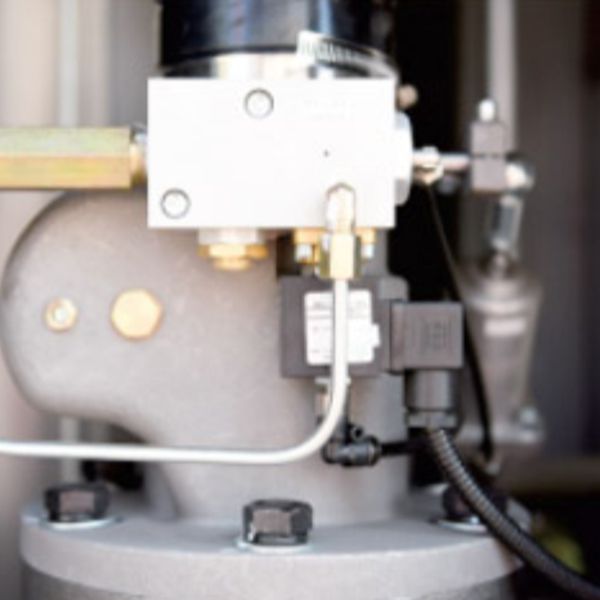

Intake valve with large opening Normally closed intake valve with large diameter features extremely low pressure drop, leading to lower failure and prolonged service life.

High durability& performance intake valve system

We use high end AIV//JIV/MPV series IGV and MPV
Safe: 16bar design pressure
Reliable: higher quality
Longer life: reliable spare parts

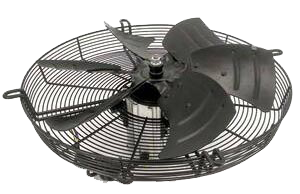

High efficient& enlarged cooling system, centrifugal fan (optional)

Motor IP class : IP44;
Motor without self cooled function;
Motor without service factor;
Low cooling air flow;
Lower cooling air pressure;

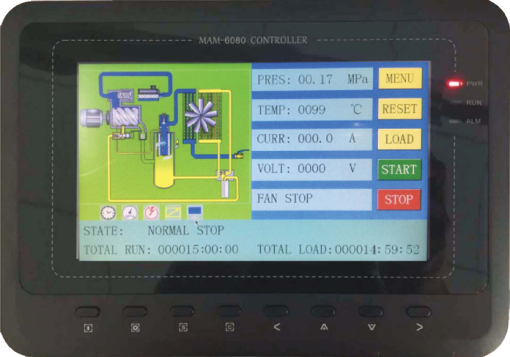

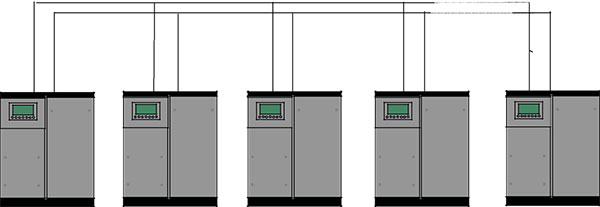

The SMART CONTROLLER ensures efficient control and system monitoring Block mode can be set as VSD –VSD, PF-PF or VSD- PF. The controller can remotely control a maximum of 16 devices, 1.2 terminals (RS485 terminal).

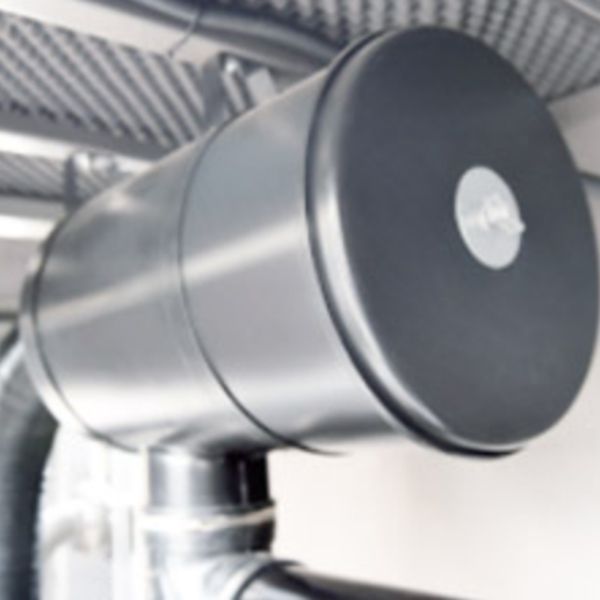

High filtration efficiency 99.99% of dust particles are removed before entering the air end, efficiently ensuring longer service life of the air compressor.

Technical Specifications

Model	Air flow(m³/min)*				Power(kw)		In/Outlet	Noise	Dimension	Weight
Model	8bar	10bar	13bar	15bar	Motor	Motor(Fan)	In/Outlet	dB(A)**	L×W×H in mm	kg
LGCD-5.5 VP	0.22-0.87	0.19-0.75	0.16-0.61	0.14-0.53	5.5	0.09	G1	69	900×750×900	255
LGCD-7.5 VP	0.30-1.20	0.26-1.04	0.23-0.90	0.2-0.80	7.5	0.09	G1	69	900×750×900	260
LGCD-11 VP	0.45-1.79	0.40-1.58	0.35-1.32	0.3-01.17	11	0.18	G1	70	950×800×1290	390
LGCD-15 VP	0.60-2.40	0.55-2.15	0.46-1.84	0.42-1.66	15	0.18	G1	70	950×800×1290	400
LGCD-20 VP	0.75-3.00	0.73-2.90	0.65-2.52	0.55-2.02	18.5	0.37	G1	71	1250×960×1300	555
LGCD-22 VP	0.88-3.51	0.80-3.16	0.68-2.71	0.62-2.45	22	0.37	G1	71	1250×960×1300	695
LGCD-30 VP	1.25-4.88	1.10-4.32	0.95-3.64	0.82-3.25	30	0.75	G1-1/4	71	1440×1006×1296	740
LGCD-37 VP	1.46-5.83	1.31-5.21	1.11-4.44	1.02-4.01	37	0.75	G1-1/4	73	1440×1006×1296	805
LGCD-45 VP	1.77-7.08	1.58-6.30	1.36-5.43	1.25-4.94	45	1.1	G1-1/4	75	1440×1006×1296	845
LGCD-55 VP	2.33-9.32	2.09-8.33	1.77-7.05	1.58-6.31	55	1.1	G2	75	1600×1200×1650	1260
LGCD-75 VP	3.1-12.31	2.8-11.13	2.44-9.61	2.19-8.74	75	1.1	G2	75	1600×1200×1650	1460
LGCD-90 VP	4.2-16.45	3.6-14.26	3.0-11.72	2.70-10.8	90	2.2	G2	75	2000×1580×1790	1650
LGCD-110 VP	5.1-20.26	4.4-17.48	3.6-14.25	3.3-13.05	110	2.2	G2	78	2540×1700×1900	1850
LGCD-132 VP	5.8-23.08	5.2-20.54	4.5-17.65	4.2-16.05	132	2.2	G2	78	2540×1640×1800	2350
LGCD-160 VP	7.1-28.00	7.1-26.00	6.05-22.00	6.5-18.39	160	3.8	G2-1/2	80	2540×1640×1800	2490
LGCD-200 VP	9.05-36.00	9.05-33.00	7.15-25.00	7.15-21.00	200	7.6	DN80	80	3150×1800×2100	3390
LGCD-250 VP	11.3-45.00	11.3-40.00	9.25-32.00	8.2-28.00	132	7.6	DN80	81	3150×1800×2100	3690
LGCD-280 VP	13.5-49.20	13.5-45.00	11.5-41.30	10.5-38.50	280	11	DN100	81	3450×2000×2200	5790
LGCD-315 VP	15.5-56.50	15.5-50.50	12.5-45.00	12.5-41.05	315	11	DN100	83	3450×2000×2200	6890

Note:

The above parameters are for reference only, the final parameters are subject to the drawings. Parameters and colors can be designed according to customers' needs.
Air/water cooling, oil content, weight, and external dimensions can be designed according to user requirements and needs, subject to final order and technical agreement.
Frequency converters (optional).
1 year warranty for air compressor and 2 years warranty for air end.
