    LGCD series direct drive rotary screw compressor is an economical model that delivers outstanding performance. Compared to our last generation of screw air compressor, this direct drive rotary screw compressor can provide 15% higher efficiency and lower noise level. The main parts used in the air compressor achieve the optimal balance between quality and cost. The high performance is compliant with ISO, TUV, GA and SGS certificates. This rotary screw compressor is supported by 1-year warranty, with 3-year air end warranty.

    • Power 7.5-560kW
    • Working pressure 0.7-1.5Mpa
    • Free air delivery 0.6-104m³/min
    • Applications
    • Features
    • Specifications
    Applications

    LGCD series rotary screw compressors are typically used in a variety of heavy industries, such as equipment manufacturing (automotive/aircraft/military/home appliance), non-ferrous metal smelting, cotton spinning, chemical fiber, bridge and road construction.

    Features
    • Coupling connected air screw compressor with less noise and higher efficiency
    • Best balance of quality &prices in selection of main parts
    • Upgraded air end with SKF 6 bearings
    • ISO, TUV, GA, SGS certificates performance guaranteed

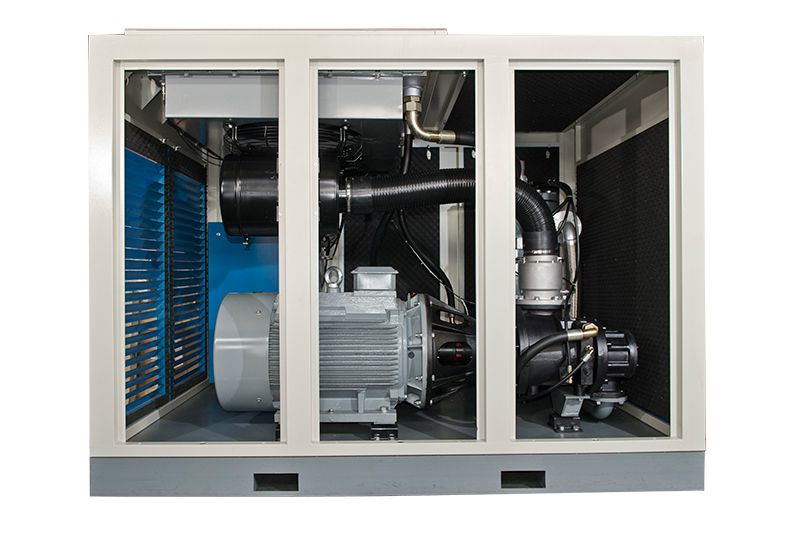

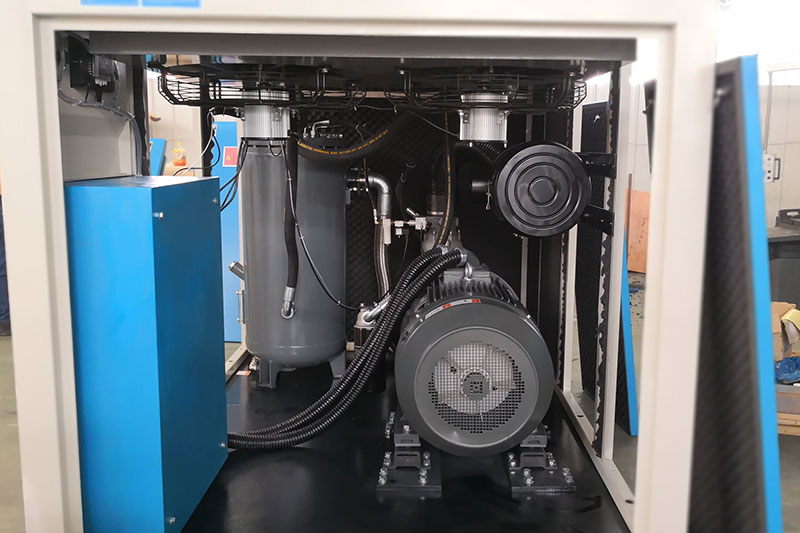

    Drives and electrics

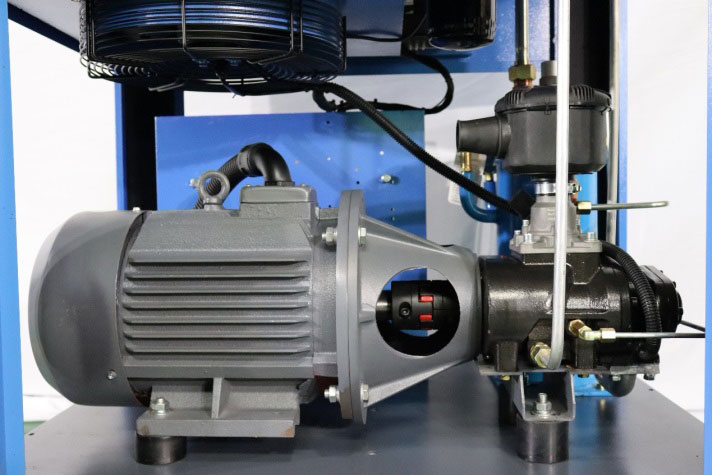

    Drives and electrics The almost loss-free power transmission direct driven coupling from KTR. Guarantees reliable, high-performance compressor operation. The regular maintenance requirement is reduced to lubrication of the motor. All the electronic components are brand products of leading manufacturers.

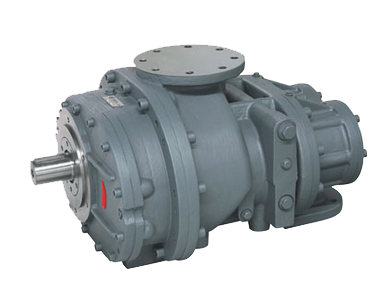

    Air end block – Reliable core part – Design in Germany

    Air end block – Reliable core part – Design in Germany

    • New ROLLING PROFILE® – ultimate efficiency with reduced noise
      Long life cycle due to increased bearing dimensions and wear-free ROLLING PROFILE®
      Wide operating pressure range from 5 to 16 bar
      High quality manufacturing and assembling – “Material from Germany and Made in China”
      Quality assurance – bench test of every air end
      Highest flexibility for your package design
    • Suitable for all types of driving motors
    • Drive options: Belt drive, direct drive, internal gear drive
    • Base and face-flange mounting

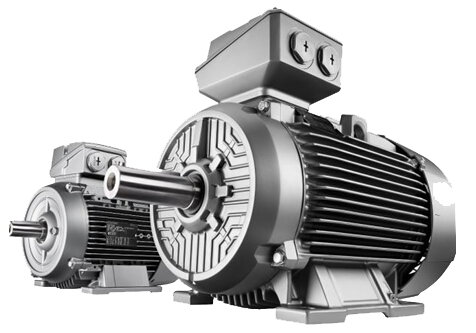

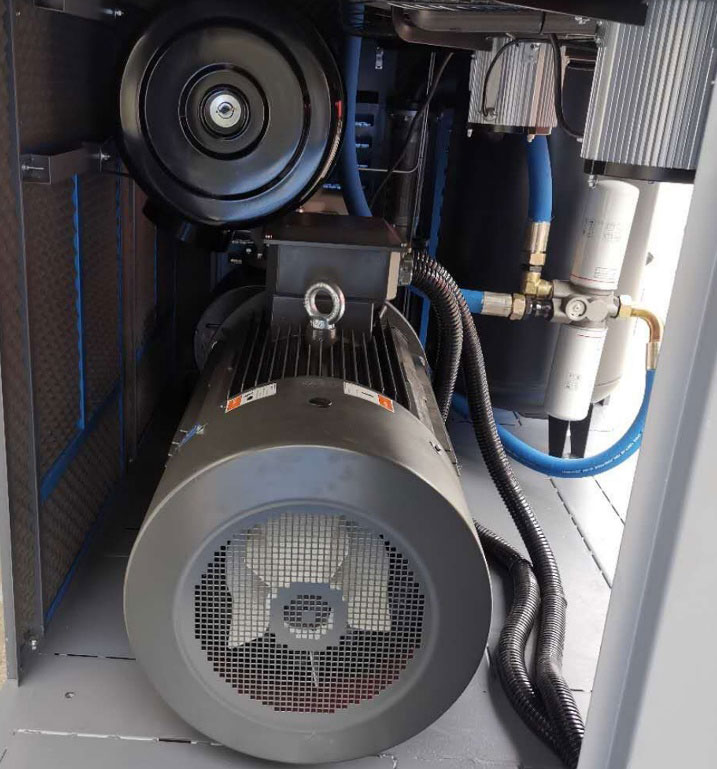

    Electric motor

    Electric motor Only electric motors from well-known manufacturers of protection class IP55, TEFC, SF1.2, IE3/IE4 are used. As a standard, the drive motors are monitored both thermally (via the thermistor of the motor) as well as electronically (overload protection via the frequency inverter).

    Oil separation system

    Oil separation system Compressors up to 132 kW are equipped with external separators that can be changed in a simple spin-off/spin-on process. Larger units have an internal separator cartridge. Due to the excellent separation efficiency of the system as a whole, the compressors can be used in the pressure range of 5.0 to 15.0bar. Special pressures available upon request.

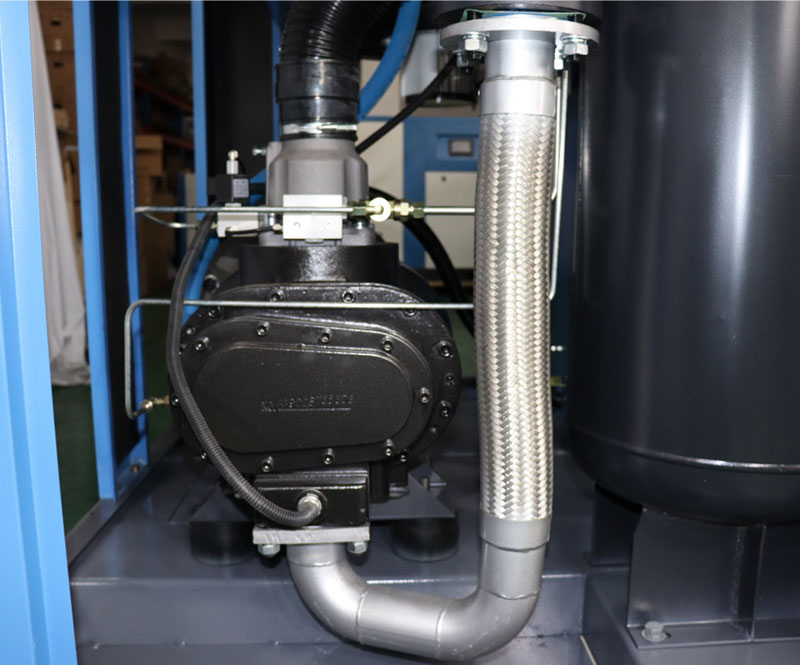

    Oil circuit

    Oil circuit

    • The design of the oil circuit can effectively enhance the sealing performance so as to extend the interval between lubricant changes. An oil level sensor is integrated to effectively sense the oil level. It is visual and can alert users to maintain the machine.
    • All the units in this series have a horizontal oil separation vessel in which the oil is separated from the compressed air highly efficiently at low speeds.
    High durability& performance intake valve system

    High durability& performance intake valve system

    • We use high end AIV/JIV/MPV series intake valves
    • Safe: 16bar design pressure
    • Reliable: higher quality
    • Longer life: reliable spare parts

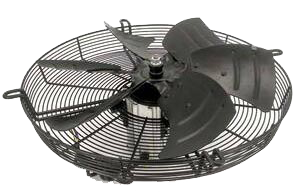

    High efficient& enlarged cooling system, centrifugal fan (optional)

    High efficient& enlarged cooling system, centrifugal fan (optional)

    • Motor IP class: IP44;
    • Motor with self-cooled function;
    • Motor with high efficient service factor;
    • Low cooling air flow;
    • Lower cooling air pressure;

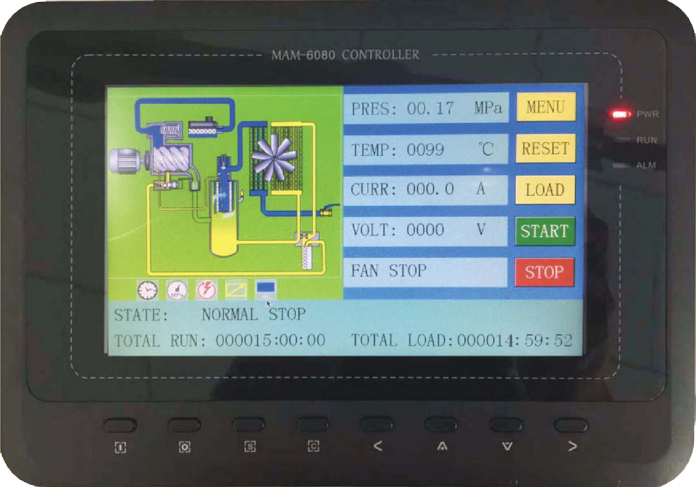

    The SMART CONTROLLER ensures efficient control and system monitoring

    The SMART CONTROLLER ensures efficient control and system monitoring The controller can work in block mode with multiple compressors. Up to 16 machines can be remotely connected.

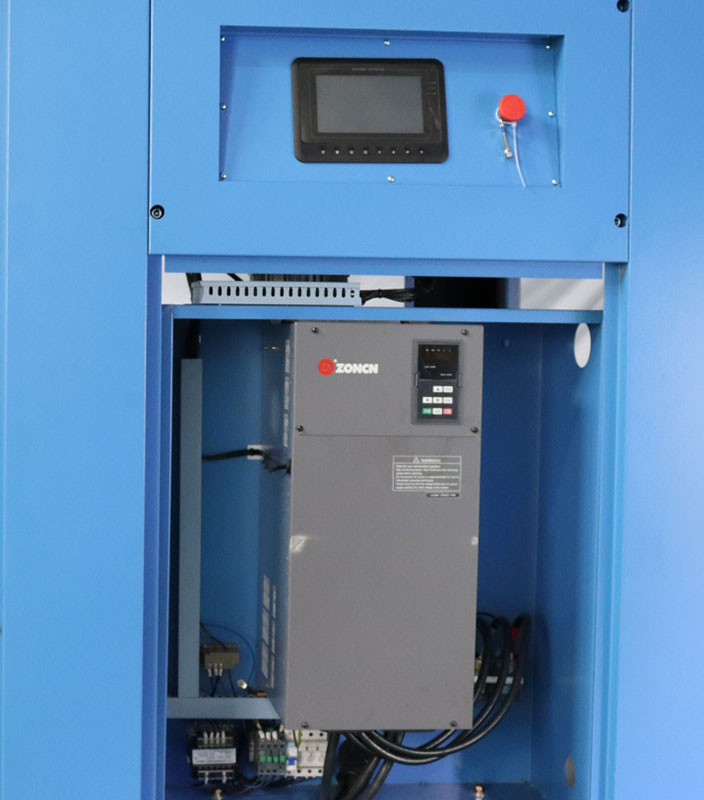

    Frequency inverters (optional)

    Frequency inverters (optional) The frequency converter minimizes idle times and optimizes supply with fluctuating compressed air.. Start-up peaks are avoided and the compressor’s delivery rate is controlled continuously–that saves electricity costs! The total costs for your compressed air supply are significantly reduced and investment costs are amortized in the shortest possible time.

    Designed to meet your needs Our LGCD series direct drive rotary screw compressor can be designed and configured according to your specific needs, such as air-cooling / water-cooling method, oil content, weight and dimension.

    Technical Specifications
    Model Capacity Working Pressure Motor Power Noise Level Driven type Compressed Air Outlet Temperature Oil Content Compressed Air Connection Dimension Weight (kg)
    (m3/min) (Mpa) (kW) dB (A)
    LGCD-1.20/7
    		 1.2 0.7 7.5 70±3 Direct Ambient temperature +10℃ 1~2ppm G3/4 800×700×930 320
    LGCD-1.15/8
    		 1.15 0.8
    LGCD-1.0/10
    		 1 1
    LGCD-0.75/13
    		 0.75 1.3
    LGCD-0.60/15
    		 0.6 1.5
    LGCD-1.70/7
    		 1.7 0.7 11 70±3 Direct Ambient temperature +10℃ 1~2ppm G3/4 1080×750×1000 340
    LGCD-1.65/8
    		 1.65 0.8
    LGCD-1.50/10
    		 1.5 1
    LGCD-1.15/13
    		 1.15 1.3
    LGCD-0.90/15
    		 0.9 1.5
    LGCD-2.35/7
    		 2.35 0.7 15 70±3 Direct Ambient temperature +10℃ 1~2ppm G1 1080×750×1000 360
    LGCD-2.30/8
    		 2.3 0.8
    LGCD-2.05/10
    		 2.05 1
    LGCD-1.65/13
    		 1.65 1.3
    LGCD-1.20/15
    		 1.2 1.5
    LGCD-3.10/7
    		 3.1 0.7 18.5 72±3 Direct Ambient temperature +10℃ 1~2ppm G1 1308×850×1160 450
    LGCD-3.00/8
    		 3 0.8
    LGCD-2.60/10
    		 2.6 1
    LGCD-2.10/13
    		 2.1 1.3
    LGCD-1.80/15
    		 1.8 1.5
    LGCD-3.65/7
    		 3.65 0.7 22 72±3 Direct Ambient temperature +10℃ 1~2ppm G1 1310×850×1160 470
    LGCD-3.60/8
    		 3.6 0.8
    LGCD-3.20/10
    		 3.2 1
    LGCD-2.75/13
    		 2.75 1.3
    LGCD-2.40/15
    		 2.4 1.5
    LGCD -5.20/7
    		 5.2 0.7 30 72±3 Direct Ambient temperature +10℃/Cooling water temperature +10℃ 1~2ppm G1-1/2 1500×1000×1320 780
    LGCD -5.00/8
    		 5 0.8
    LGCD -4.50/10
    		 4.5 1
    LGCD -3.70/13
    		 3.7 1.3
    LGCD -3.00/15
    		 3 1.5
    LGCD -6.70/7
    		 6.7 0.7 37 72±3 Direct Ambient temperature +10℃/Cooling water temperature +10℃ 1~2ppm G1-1/2 1500×1000×1320 830
    LGCD -6.60/8
    		 6.6 0.8
    LGCD -5.80/10
    		 5.8 1
    LGCD -4.70/13
    		 4.8 1.3
    LGCD -4.10/15
    		 4.1 1.5
    LGCD -7.30/7
    		 7.7 0.7 45 72±3 Direct Ambient temperature +10℃/Cooling water temperature +10℃ 1~2ppm G1-1/2 1500×1000×1320 900
    LGCD -7.00/8
    		 7.6 0.8
    LGCD -6.50/10
    		 7 1
    LGCD -5.50/13
    		 5.8 1.3
    LGCD -4.70/15
    		 4.7 1.5
    LGCD -10.80/7
    		 10.8 0.7 55 76±3 Direct Ambient temperature +10℃/ Cooling water temperature +10℃ 1~2ppm G2 1750×1200×1500 1180
    LGCD -10.00/8
    		 10 0.8
    LGCD -9.00/10
    		 9 1
    LGCD -7.80/13
    		 7.8 1.3
    LGCD-6.50/15
    		 6.5 1.5
    LGCD -13.60/7
    		 13.6 0.7 75 76±3 V belt/Direct Ambient temperature +10℃/Cooling water temperature +10℃ 1~2ppm G2 1750×1200×1500 1340
    LGCD -13.00/8
    		 13 0.8
    LGCD -11.50/10
    		 11.5 1
    LGCD -9.80/13
    		 9.8 1.3
    LGCD -7.60/15
    		 7.6 1.5
    LGCD -17.00/7
    		 17 0.7 90 76±3 Direct Ambient temperature +10℃/Cooling water temperature +10℃ 1~2ppm DN80 1750×1200×1500 1850
    LGCD-15.30/8
    		 15.3 0.8
    LGCD -14.00/10
    		 14 1
    LGCD -12.00/13
    		 12 1.3
    LGCD -10.50/15
    		 10.5 1.5
    LGCD -21.50/7
    		 21.5 0.7 110 79±3 Direct Ambient temperature +10℃ /Cooling water temperature +10℃ 1~2ppm DN80 2350×1500×1760 2200
    LGCD -20.50/8
    		 20.5 0.8
    LGCD -17.50/10
    		 17.5 1
    LGCD -14.50/13
    		 14.5 1.3
    LGCD -12.00/15
    		 12 1.5
    LGCD -24.50/7
    		 24.5 0.7 132 79±3 Direct Ambient temperature +10℃/Cooling water temperature +10℃ 1~2ppm DN80 2350×1500×1760 2260
    LGCD -23.50/8
    		 23.5 0.8
    LGCD -21.00/10
    		 21 1
    LGCD -17.50/13
    		 17.5 1.3
    LGCD -14.50/15
    		 14.5 1.5
    LGCD-29.20/7
    		 29.2 0.7 160 79±3 Direct Ambient temperature +10℃/Cooling water temperature +10℃ 1~2ppm DN80 2650×1650×1800 3300
    LGCD-28.00/8
    		 28 0.8
    LGCD-26.00/10
    		 26 1
    LGCD-22.00/13
    		 22 1.3
    LGCD-357.50/7
    		 37.5 0.7 200 79±3 Direct Ambient temperature +10℃/Cooling water temperature +10℃ 1~2ppm DN100 2650×1650×1800 3860
    LGCD-36.00/8
    		 36 0.8
    LGCD-33.00/10
    		 33 1
    LGCD-25.00/13
    		 25 1.3
    LGCD-46.50/7
    		 46.5 0.7 250 79±3 Direct Ambient temperature +10℃/Cooling water temperature +10℃ 1~2ppm DN100 3000×1950×1850 5700
    LGCD-45.00/8
    		 45 0.8
    LGCD-40.00/10
    		 40 1
    LGCD-36.00/13
    		 36 1.3
    LGCD-52.00/7
    		 52 0.7 280 79±3 Direct Ambient temperature +10℃/Cooling water temperature +10℃ 1~2ppm DN100 3000×1950×1850 5900
    LGCD-49.20/8
    		 49.2 0.8
    LGCD-45.00/10
    		 45 1
    LGCD-41.30/13
    		 41.3 1.3
    LGCD-60.60/7
    		 60.6 0.7 315 79±3 Direct Ambient temperature +10℃/Cooling water temperature +10℃ 1~2ppm DN100 3000×1950×1850 6800
    LGCD-56.50/8
    		 56.5 0.8
    LGCD-50.50/10
    		 50.5 1
    LGCD-45.00/13
    		 45 1.3
    LGCD-71.50/7
    		 71.5 0.7 355 79±3 Direct Ambient temperature +10℃/Cooling water temperature +10℃ 1~2ppm DN125 5000×2050×2200 8500
    LGCD-64.60/8
    		 64.6 0.8
    LGCD-55.50/10
    		 55.5 1
    LGCD-46.50/13
    		 46.5 1.3
    LGD-600W
    		 86 0.8 450 79±3 Direct Cooling water temperature +10℃ 1~2ppm DN150 4500×2500×2200 12500
    LGD-600W
    		 73.5 1
    LGD-670W
    		 95 0.8 500 79±3 Direct Cooling water temperature +10℃ 1~2ppm DN150 4500×2500×2200 12900
    LGD-670W
    		 82 1
    LGD-750W
    		 104 0.8 560 79±3 Direct Cooling water temperature +10℃ 1~2ppm DN150 4500×2500×2200 13500
    LGD-750W
    		 90.5 1

    Note: the above parameters and colors are designed according to customer needs, the parameters are for reference only, and the final parameters of the drawings shall prevail.
